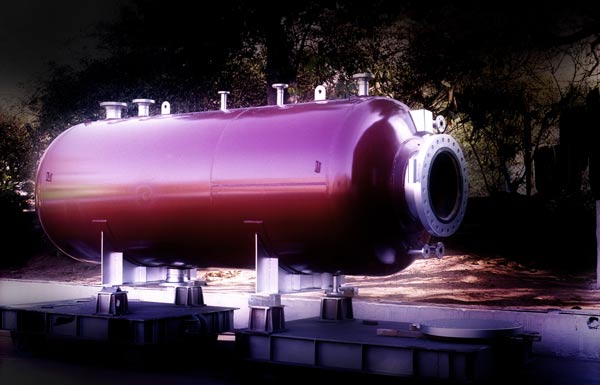

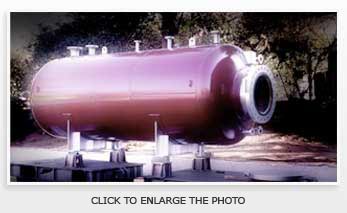

Pressure Vessels

PRESSURE VESSELS, REACTORS AND TORRES FRACTIONARE (ASME SECTION VIII DIV. 1 and 2)

CAD LINE develops calculation, design and detailing for manufacture of Pressure Vessels, Reactors and Torres fractionated to the petrochemical industry, food, pharmaceutical, steel, etc.. Using the Compress program (calculation of vessels and towers), AutoCad and Solidworks, we have developed equipment of various shapes and sizes.

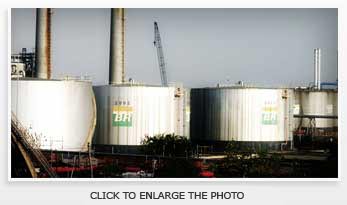

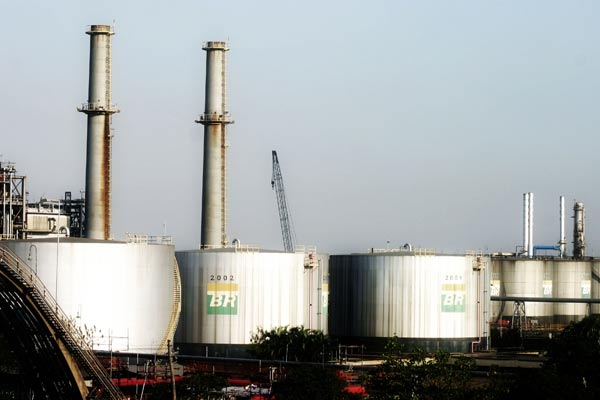

Storage Tanks

STORAGE TANKS, SILOS AND FIREPLACE

The CAD LINE develops calculation, design and detailing for manufacture of Storage Tanks (as API 650 and 620), Silos and Chimneys (ASME STS-1) for the petrochemical industry, mining, steel, etc.

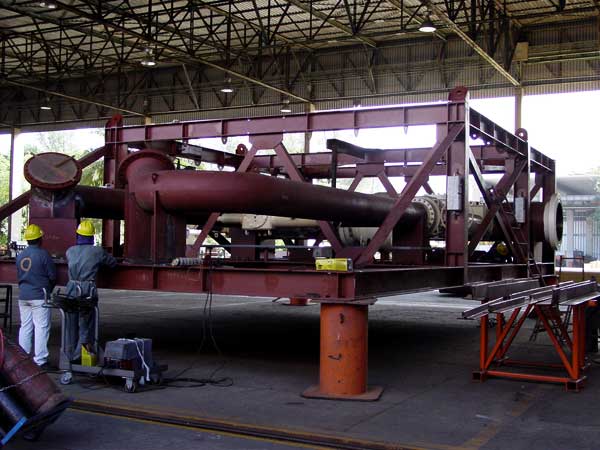

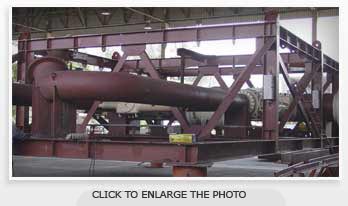

Special Metallic Structures

SPECIAL METALLIC STRUCTURES

CAD LINE develops calculation, design and detailing for fabrication of metal special petrochemical industry, mining, steel, etc.. By using programs such as SAP, AutoCad and Solidworks, we have developed structures for a variety of functions (decks of platforms, structures for dust removal products, facilities for backing up equipment, etc.).

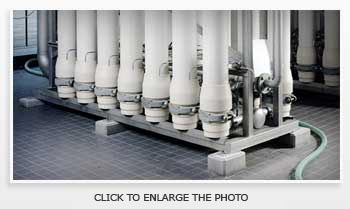

Wastewater Treatment and Water Reuse Modular Units

WASTEWATER TREATMENT AND WATER REUSE MODULAR UNITS.

CAD LINE develops projects LINE Stations Wastewater Treatment (TEE) and Units of Water Reuse Modular (URAM) for industries, shopping malls and condominiums. This service is made by process engineers, who develop the basic design and mechanical engineers who develop the project executive.
